【型號及規格參數】
| 型號 |
平板上部卸料大翻蓋離心機 |
分離因素（w2r/g） |
電機功率 |
整機重量 |
外形尺寸 |
| 直徑 |
高度 |
工作容積（L） |
裝料限量 |
轉速（r/min） |
| PQDF800 |
800 |
420 |
120 |
160 |
1300 |
820 |
7.5 |
2400 |
1700*1250*1650（2050） |
| PQDF1000 |
1000 |
460 |
180 |
200 |
1200 |
810 |
11 |
3500 |
2000*1500*1880（2400） |
| PQDF1250 |
1250 |
680 |
420 |
480 |
1050 |
720 |
22 |
4500 |
2350*1800*2335（2900） |
| PQDF1600 |
1600 |
1000 |
1000 |
1100 |
1050 |
740 |
37 |
10000 |
3000*2200*3000（3900） |
【主要特點】
本機除轉鼓底和三角架為襯包不銹鋼件外，其他均為不銹鋼件，完全符合GMP標準。
機蓋為氣彈簧助力揭蓋形式，加料管和洗滌管采用快速接頭，蓋上配有視鏡和通氣孔，使設備整體便于清洗。
可采用變頻啟動，啟動平穩，分離因數可調，非接觸式能耗制動系統，防靜電皮帶傳動，機體密閉結構，密封件采用硅橡膠或氟橡膠?？蓪?shí)現密閉防爆要求。
本機采用直聯雙速電機，剎車采用電氣剎車，完全適用于易燃易爆，潔凈要求高的企業。
配置氮?dú)獗Ｗo(hù)系統，保證離心機內腔 與外部空氣隔離。
晶粒不易破碎。
【主要用途】
用于固相為顆粒狀的懸浮液無聊的固液相分離，也可用于纖維狀物料的固液分離。
如：石膏，硫酸銅，氯化鉀，硼砂，燃料，動植物提取液，農藥藥劑，食鹽，味精，食品添加劑，淀粉，帛糖，化學調味料，抗生素，維生素，銅、鋅、鋁等礦產物、金屬精制，污泥處理，污水處理等。
除一般用途外，平板式特別適用于粘度大、有毒、有害、易燃、易爆等介質的固液分離。
【標準制造形式】
結構：外殼配置翻蓋及進料管、洗滌管、觀察鏡、排氣口、照明孔。密閉結構，轉鼓及外殼、翻蓋等部件為不銹鋼材料制造。機座等為鑄造件。
所有緊固件為不銹鋼件。
傳動與制動：防爆電機+摩擦式自動離合器+摩擦式手動制動裝置。
除用途廣泛的潔凈型以外，可根據企業需求定制四氟型，襯塑型，襯PE型，鈦材型平板式離心機。

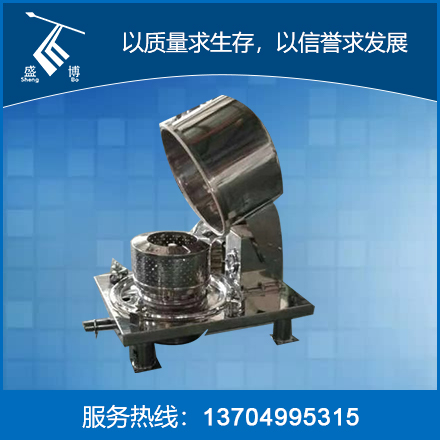

Plate upper discharge large flip cover centrifuge
【Specification】
| Model |
Plate upper discharge large flip cover centrifuge |
Separation factor（w2r/g） |
Motor power（kw） |
Overall weight（kg） |
External dimensions（mm） |
| Diameter（mm） |
Height（mm） |
Bowl Volume（L） |
Loading limit（kg） |
Speed（r/min） |
| PQDF800 |
800 |
420 |
120 |
160 |
1300 |
820 |
7.5 |
2400 |
1700*1250*1650（2050） |
| PQDF1000 |
1000 |
460 |
180 |
200 |
1200 |
810 |
11 |
3500 |
2000*1500*1880（2400） |
| PQDF1250 |
1250 |
680 |
420 |
480 |
1050 |
720 |
22 |
4500 |
2350*1800*2335（2900） |
| PQDF1600 |
1600 |
1000 |
1000 |
1100 |
1050 |
740 |
37 |
10000 |
3000*2200*3000（3900） |
【Characteristics】
This machine is made of stainless steel except the drum bottom and tripod, which are lined with stainless steel. It fully complies with GMP standard.
The cover of the machine is in the form of gas spring assisted cover removal. The feeding pipe and washing pipe adopt quick joints. The cover is equipped with sight glasses and vent holes, making the whole equipment easy to clean.
Variable frequency starting can be adopted, starting is stable, separation factor is adjustable, non-contact energy consumption braking system, anti-static belt transmission, body sealing structure, and sealing element adopts silicone rubber or fluororubber. The requirement of airtight explosion prevention can be met.
This machine adopts direct-coupled two-speed motor and electric brake, which is completely suitable for enterprises with inflammable and explosive materials and high cleaning requirements.
A nitrogen protection system is provided to ensure that the centrifuge inner cavity is isolated from the outside air.
Grain is not easily broken.
【Applications】
Widely used in solid-liquid separation of suspension materials with granular solid phase.
For example, gypsum, oxalic acid, copper sulfate, potassium chloride, salt, monosodium glutamate, food additives, starch, silk sugar, chemical seasonings, antibiotics, vitamins, caffeine, sludge treatment, sewage treatment, etc.
In addition to general use, flat plate is especially suitable for solid-liquid separation of medium with high viscosity, toxic, harmful, flammable, explosive, etc.
【Standard manufacturing form】
Structure: The housing is equipped with flip cover, feed pipe, washing pipe, observation mirror, exhaust port and lighting hole. Closed structure, drum, shell, flip cover and other parts are made of stainless steel. The machine base and the like are cast pieces.
All fasteners are stainless steel.
Transmission and braking: explosion-proof motor+friction type automatic clutch+friction type manual braking device.
In addition to the clean type with a wide range of uses, we can customize tetrafluoroethylene type, lining plastic type, PE type and titanium plate centrifuge according to the needs of enterprises.
